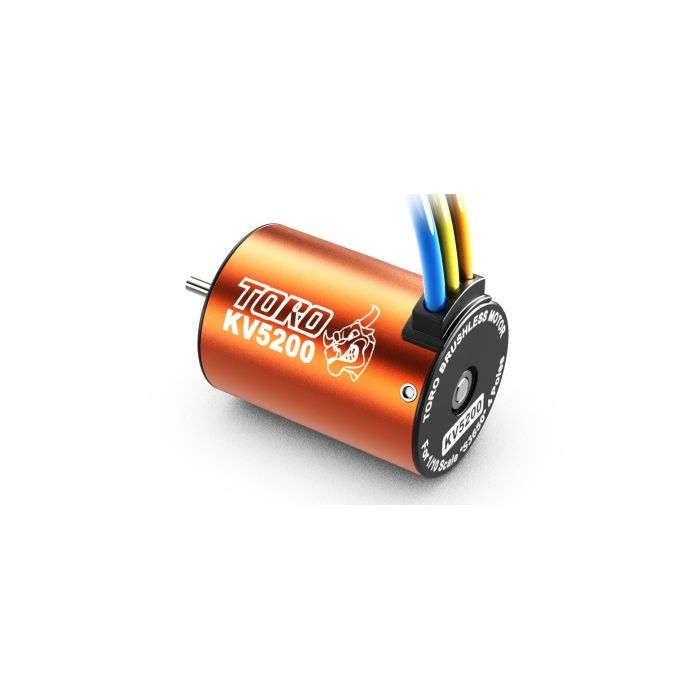

SK-400005-11 TORO 5200KV 4P BL MOTOR FOR 1/10 CAR

SK-400005-11

TORO 5200KV 4P BL MOTOR FOR 1/10 CAR

Item Name: Toro 5200KV/4P BL Motor for 1/10 Car
Sensored /Sensorless: Sensorless
Turns: 2T
KV value: 5200KV
Poles: 4P
Diameter: 35.9mm
Motor Length: 50mm
Extend shaft diameter: 3.17mm
Length of extend shaft: 15mm
Weight: 190g
Thickness of lamination: 0.35mm
No loading @7.2V Current:3.8A
Max current: 96A
Resistance (?): 0.004?
Battery range: 2S
Operation Temperature: 130C
Max Temperature: 180C
Suitable car scale: 1/10
Suitable ESC: 100A
Connector Type: 3.5mm
