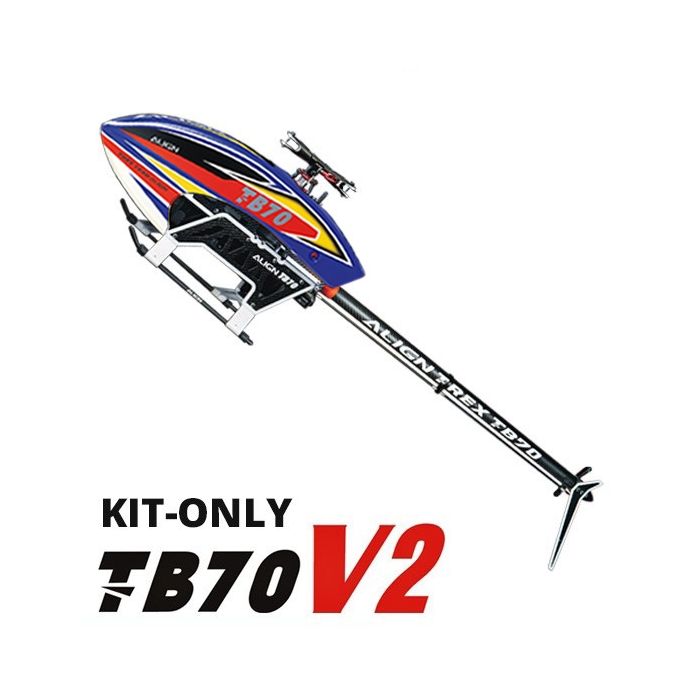

RH70E64X Align TB70 V2 KIT ONLY Blue Canopy - NO BLADES - NO MOTOR

Specification

● Length: 1356mm
● Height: 358mm
● Width: 187mm
● Main Blade Length: 650-730mm
● Main Rotor Diameter: 1542mm
● Tail Length: 105-115mm
● Tail Rotor Diameter: 279mm
● Motor Belt Pulley: 22T
● Belt Pulley: 50T
● Front Drive Main Shaft: 15T
● Main Drive Gear: 62T
● Autorotation Tail Drive Gear: 27T ● Tail Drive Gear: 23T
● Drive Gear Ratio: 9.38:1:4.83
● Max RPM(approx.): 2400RPM
● Frame Weight: Approx. 2.3kg

Accessories

● TB70 V2 Kit Set x 1 set
● Main Blades and Tail Blades NOT INCLUDED
● Motor NOT INCLUDED
